Daikin FWW600VF chilled water fan coil unit
The Daikin FWW600VF is a horizontal ceiling-concealed fan coil unit for standard chiller systems. Its two-pipe, four-row coil and three-speed PSC motor provide ducted cooling for compatible chilled-water installations.
Product features
- Model / SKU: FWW600VF
- Brand: Daikin
- Series: FWW-VF
- Product type: Chilled water fan coil unit
- Total cooling capacity: 6.2 kW / 21,154.0 BTU/h / approximately 1.8 TR
- Airflow (medium speed): 920 m³/h / 541 CFM
- Airflow (high speed): 960 m³/h / 565 CFM
- External static pressure: 50 Pa
- Coil: Copper tubes with hydrophilic aluminium fins
- Coil connection side: Left or Right
Rating conditions
Cooling capacity follows the Daikin catalogue: entering air 27°C DB / 19.5°C WB; chilled water 7°C entering / 12°C leaving; medium fan speed and 50 Pa ESP, with return-air plenum and an 8 mm nylon filter. Tonnage is converted from the catalogue cooling kW and rounded to one decimal place. Airflow figures are listed separately by fan speed.
Coil connection and image
Left and Right refer to the coil connection side when standing in front of the unit facing the airflow. Select the required side before adding to cart. The shared range photograph is representative; appearance and connection layout may vary by model and selected side. Optional controls and valves are not included unless specified.
Browse the FWW-VF range or contact Coolwell in Dubai for selection assistance.

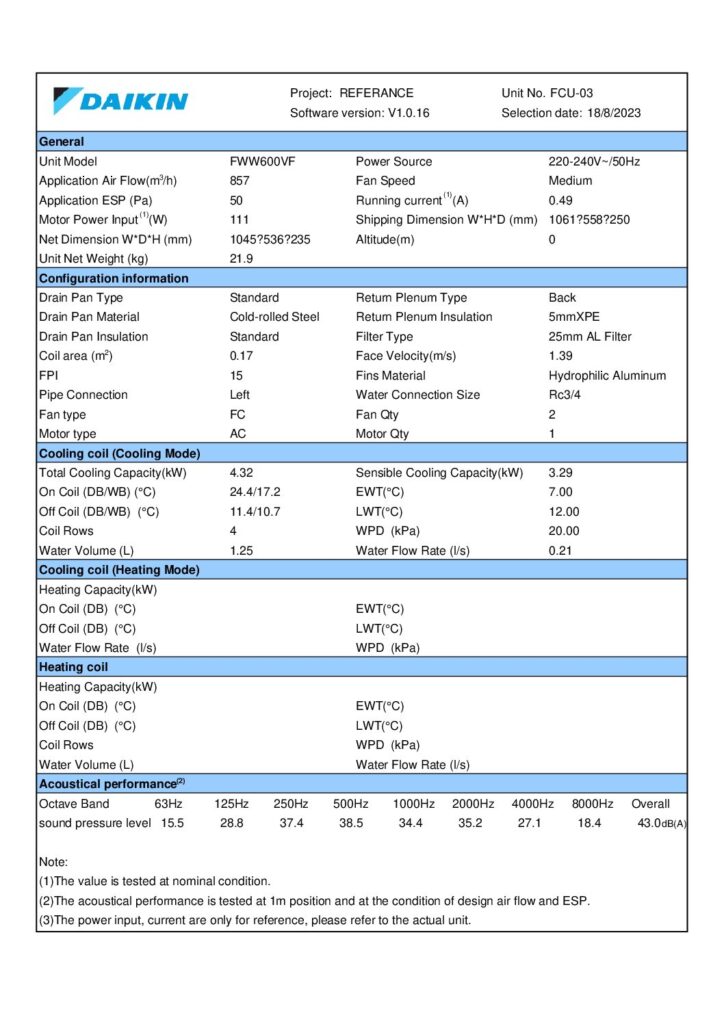

Software selection performance — FWW600VF
| Fan speed / external static pressure | Medium / 50 Pa |
|---|---|
| Entering air (DB / WB) | 24.4°C / 17.2°C |
| Leaving air (DB / WB) | 11.4°C / 10.7°C |
| Entering / leaving water | 7.0°C / 12.0°C |
| Total cooling capacity | 4.3 kW |
| Sensible cooling capacity | 3.3 kW |
| Application airflow | 857 m³/h |
| Water flow rate | 0.21 L/s |
| Water pressure drop | 20.0 kPa |
| Motor power input (reference) | 111 W |
| Running current (reference) | 0.49 A |
| Power supply | 220–240 V / 50 Hz |
| Overall sound pressure level | 43.0 dB(A) |
| Coil rows / water volume | 4 / 1.25 L |
| Net dimensions (W × D × H) | 1045 × 536 × 235 mm |
| Net weight | 21.9 kg |
